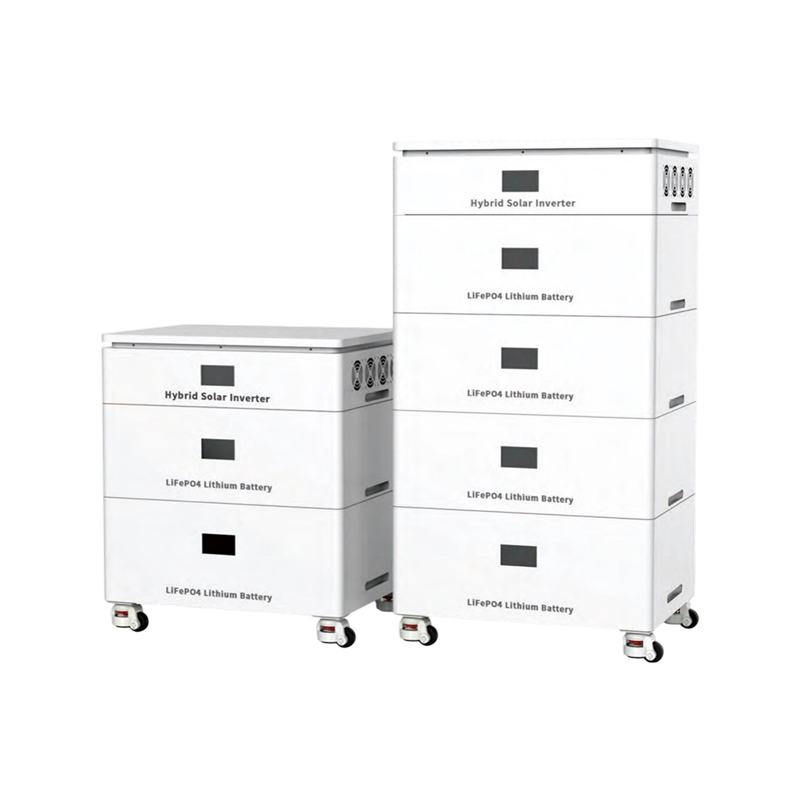

DP-10K-15P2A 10kW 30kWh Stackable All-in-One Solar Battery

Model

ESS 10KW+30KWH

 ESS 12KW+60KWH

AC Input

Rated Input Voltage(VAC)

220/230/240; L+N+PE

Voltage Range(VAC)

90~280+3(normal mode);170~280+3(UPS mode)

Frequency(Hz)

50Hz/60Hz(Auto detection)

AC Output

Rated Capacity(W)

1000OW

12000W

Voltage(VAC)

220/230/240

Power Factor(PF)

1

Frequency

50/60Hz+0.1%

Switch Time(ms)

10(APP/UPS mode),20(GEN mode)

Wave Form

Pure Sine Wave

Overload protection

(105%<load <110%)±5%: report error and turn off the output after 5 minutes;

(110%<load<125%)±5%: report error and turn off the output after 10 seconds;

Load>125%±5%: report error and turn off the output after 5 seconds

Max. Efficiency(Battery Mode)

94%@48VDC

Charger(PV/AC)

Solar Charger Type

Dual MPPTs

Max PV input current /power

1*MPPT:27A/9KW,2*MPPTs:22.5A/15kW

Operating Voltage Range(VDC)

60Vdc~450Vdc

Max PV Open Circuit Voltage(VDC)

500Vdc

Max PV Charge Current(A)

160A

Max AC Charge Current(A)

160A

Max. Charge Current(PV+AC)(A)

160A

Battery

Nominal Battery Voltage

51.2VDC

Rated Energy

15360Wh*2

15360Wh*4

Usable Energy(90%DOD)

27.6KWh

55.3KWh

Max. Charge/Discharge Current

200A/200A

Operation Voltage Range

40.0Vdc~58.4Vdc

Operation Temperature

-10℃~+50℃

Interface

Reveal

LCD

Communication

RS485/RS232/USB /Dry Contact

Monitoring

WiFi

General Data

Ingress Protection

IP21

Operating Temperature

-10 ℃~50℃

Relative Humidity

5%～95%(Non-condensing)

Storage Temperature

-15℃~60℃

Max. Operating Altitude

4000m(Derating above 1000m)

DIMENSION

LxW×H(products size, mm)

Inverter:680×520×182mm/Battery:680x520×246mm(1PCS)

LxW×H(package size, mm)

Inverter:736X576×336mm/Battery:760X600X444mm(1PCS)

Weight(NW Kg)

Inverter:29Kg/Battery:119Kg(1PCS)

Weight(GW Kg)

Inverter:33Kg/Battery:139Kg(1PCS)
