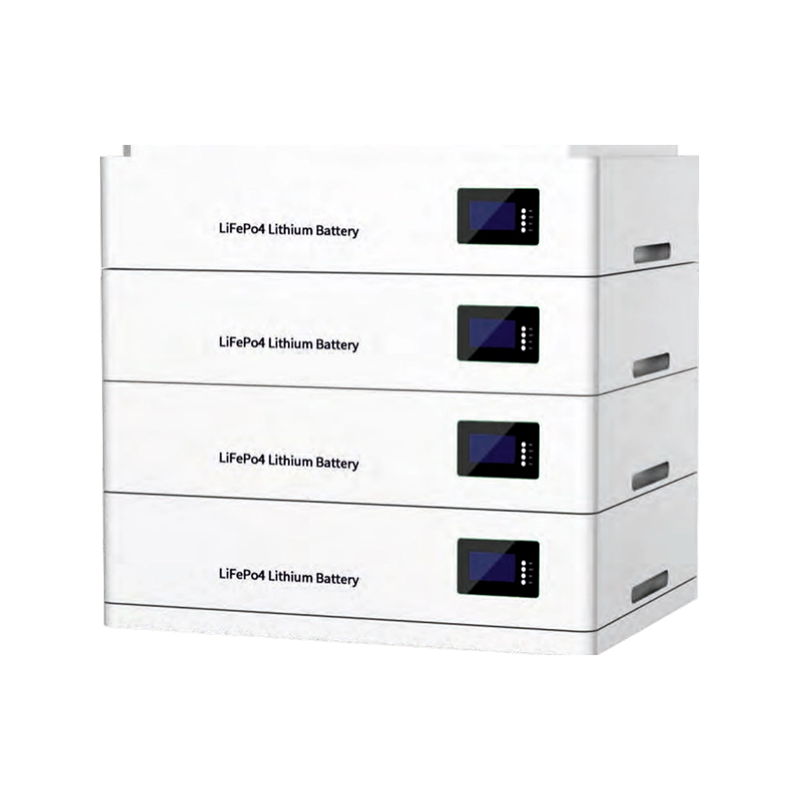

DP-100-5P8A 5.12-40.96kWh Stackable LiFePO4 Battery

DP-100-5P8A is a stackable lithium battery system built on a 5.12kWh modular platform (51.2V/100Ah per module), allowing users to expand capacity from 5.12kWh to 40.96kWh by stacking up to eight modules as energy needs grow. Each module is equipped with an independent intelligent BMS providing comprehensive protection against overcharge, over-discharge, over-current, short-circuit, and over-temperature. The system supports multiple communication protocols including CAN and RS485 for seamless integration with major hybrid inverters. With a cycle life exceeding 5,000 cycles, an IP20-rated enclosure, and an LCD display for real-time status monitoring, the DP-100-5P8A offers a scalable and reliable energy storage solution for residential solar self-consumption and backup power applications. The stackable design simplifies installation and future expansion, making it suitable for households looking to start with a smaller capacity and expand over time. Certified with UN38.3 and CE, it ensures safe operation and compliance with international transport standards.

MODEL	HB PRO Series 51.2V100AH	HB PRO Series 51.2V200AH	HB PRO Series 51.2V400AH	HB PRO Series 51.2V800AH
Case design	stackable	stackable	stackable	stackable
Battery Type	LiFePO4	LiFePO4	LiFePO4	LiFePO4
Normal Battery Voltage(Vdc)	51.2V	51.2V	51.2V	51.2V
Normal Capacity(25℃ 0.2C)(Ah)	100Ah	100Ah*2pcs	100Ah*4pcs	100Ah*8pcs
Normal Capacity(25℃ 0.2C)(Ah)	5120WH	10240WH	20480WH	40960WH
Folat Charge Voltage(Vdc)	56.0V	56.0V	56.0V	56.0V
Voltage range(Vdc)	40.0~58.4V	40.0~58.4V	40.0~58.4V	40.0~58.4V
Max. Continuous Charge Current(A)	50A	100A	200A	400A
Max. Continuous Discharge Current(A)	100A	200A	400A	800A
Max. Pulse Discharge Current(A)	150A 1Sec	300A 1Sec	600A 1Sec	1200A 1Sec
Terminal	M6	M6	M6	M6
Storage temperature	0℃~30℃
IP degree	IP 20
Storage duration	6 months at 25℃
Safety standard	UN38.3, MSDS
Display	LCD
Communication Port(Optional)	CAN, RS485
PROTECTION
Protection	Overcharge protection, Overdischarge protection, Overcurrent protection, Short-circuit protection, Over-temperature protection.
AMBIENT
Working Temperature	-10℃~+50℃
Humidity	0~95%(no condensation)
Sea Level(m)	≤1500
DIMENSION
LxW×H(products size,mm)	670460175mm	670460175mm*2PCS	670460175mm*4PCS	670460175mm*8PCS
LxW×H(package size,mm)	750540255mm	750540255mm*2PCS	750540255mm*4PCS	750540255mm*8PCS
Net Weight (Kg)	45.0Kg	45.0Kg*2PCS	45.0Kg*4PCS	45.0Kg*8PCS
Gross Weight(Kg)	48.0Kg	48.0Kg*2PCS	48.0Kg*4PCS	48.0Kg*8PCS
*Product appearance and battery capacity support customization.
