DP-5KA 5kW Hybrid Solar Inverter 48V

Home / Products / Inverter / DP-5KA 5kW Hybrid Solar Inverter 48V

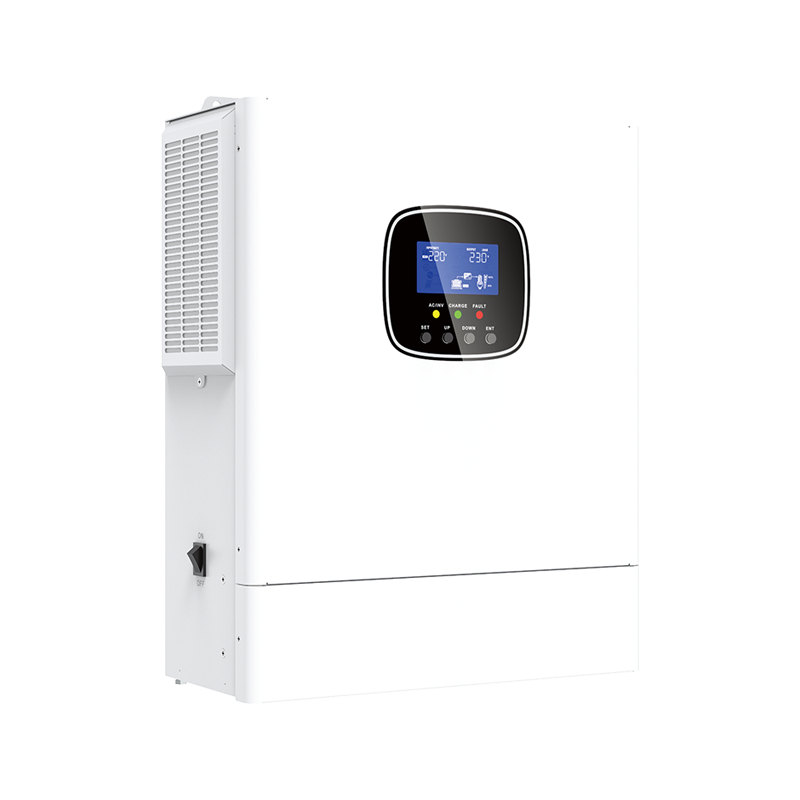

DP-5KA 5kW Hybrid Solar Inverter 48V

DP-5KA 5kW Hybrid Solar Inverter 48V is a 5kW hybrid solar inverter designed for residential photovoltaic systems, converting DC power from solar panels and batteries into stable AC power for household use. Operating at 48V battery voltage with a wide MPPT tracking range of 60-450V and maximum PV input of 7,500W, it accommodates various solar array configurations. The inverter delivers pure sine wave output at 230VAC with 22A maximum output current, supporting both grid-tied and off-grid operation modes, with UPS functionality for seamless transition during grid outages. Compatible with lead-acid and lithium batteries, it provides flexible energy storage options for homeowners. Communication interfaces including RS485, USB, WiFi, and dry contact enable remote monitoring and integration with battery management systems. With a compact lightweight design (8.5kg net weight, 359.5×290.2×133mm dimensions) and CE certification, the DP-5KA is a practical solution for households seeking to maximize solar self-consumption, reduce electricity costs through peak-valley arbitrage, and maintain power supply during grid interruptions.

Contact Us
PREV:DP-5KB 5kW 48V Hybrid Inverter for Home Solar
NEXT:No next product
  • Hardware specifications

  • Max. PV Input Power(Wp)

    7500

    Max. PV input voltage(VDC)

    500

    MPPT Tracking Range(VDC)

    60-450

    Max. PV input current(A)

    30

    Grid Input parameter

    L+N+PE 90-280VAC 50Hz/60Hz

    Max.Grid input current(A)

    22

    Output parameter

    230VAC 50/60Hz

    Max.Output current(A)

    22

    Output Waveform

    Pure Sine Wave

    Rated Power(W)

    5000

    Peak Power(VA)

    10000

    Battery Type

    Lead-acid or lithium batteries

    Rated Voltage(VDC)

    48

    Voltage Range(VDC)

    40-58

    Max. Charge And Discharge Current(A)

    100

    Operation Temperature Range(℃)

    -15-55

    Levels of protection

    IP20

    Humidity

    ≤95%rh

    Communication

    RS485、USB、Wi-Fi、Dry contact

    Weight(KG)

    N.W.:8.5

    G.W.:9.9

    Size/Packaging size(mm)

    359.5*290.2*133/470*370*215

    Certification

    CE
