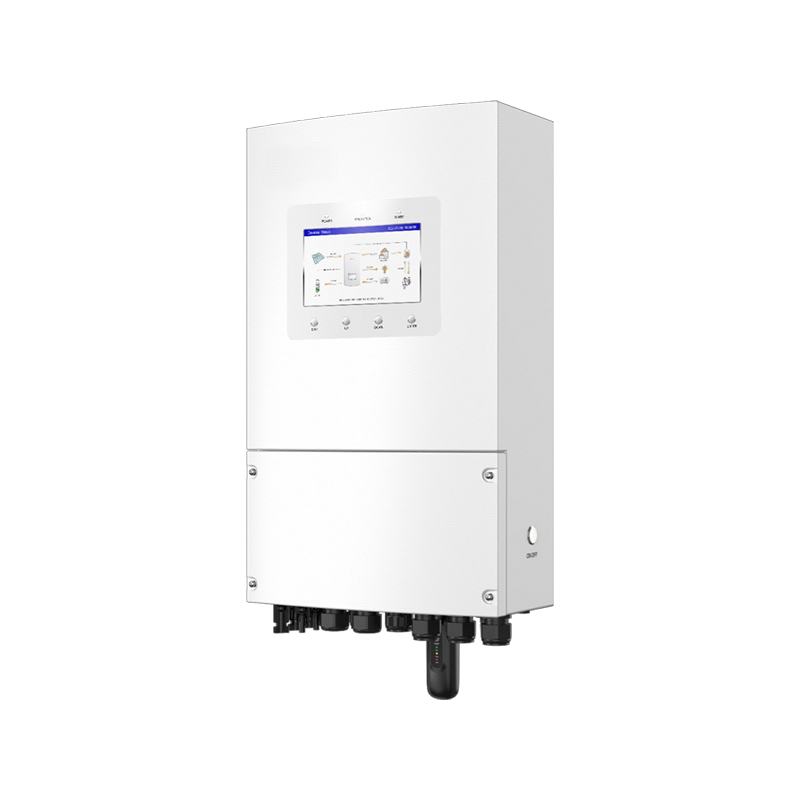

DP-5KB 5kW 48V Hybrid Inverter for Home Solar

DP-5KB 5kW 48V Hybrid Inverter for Home Solar is a 5kW hybrid solar inverter designed for residential photovoltaic systems, offering both on-grid and off-grid operation with seamless transition for backup power during outages. Operating at 48V battery voltage with a maximum charge/discharge current of 112A, it supports lead-acid and lithium battery types for flexible energy storage integration. The inverter features dual MPPT inputs with a maximum PV input of 10,000W (2×5,000W) and a wide tracking range of 90-435V, accommodating various solar panel configurations. Delivering pure sine wave output at 220/230VAC with 5,000W rated power and 10,000W surge capacity, it handles startup loads for household appliances. The IP66-rated enclosure makes it suitable for both indoor and outdoor installations across a wide operating temperature range of -25°C to 60°C. Communication interfaces including RS485, CAN, Wi-Fi, and LAN enable remote monitoring and system integration with leading battery management platforms. With CE certification, the DP-5KB provides a flexible and expandable solution for homeowners looking to maximize solar self-consumption and reduce electricity costs through peak-valley arbitrage.
